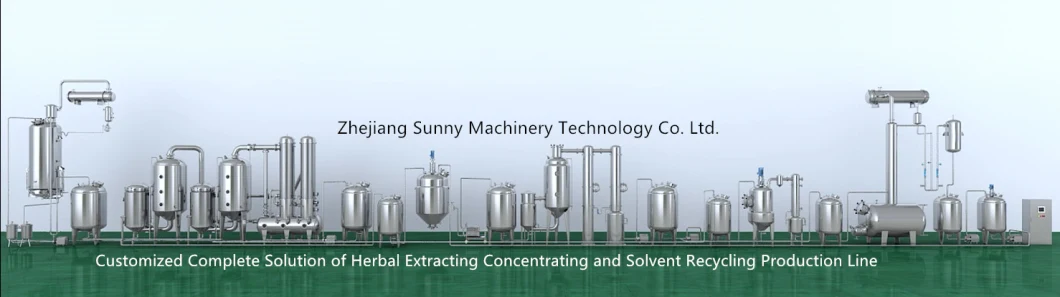

Complete Production Line for Automatic Herbal Extraction and Concentration Application .
Aromatic Oil Extraction from natural plant with complete automatic control system
This equipment is suitable for extracting and concentrating the effective component from herbal or animal parts. It also can get the solvent recovery and the essential oil collection.
Feature:
1.This equipment is consist of extracting tank,condenser,oil-water separator,etc.
2.This equipment is designed according to the extraction process requirement of essential oil, with fast extracting speed and high collection rate.
For detail process requirement on essential oil / plant / aromatic oil extraction processing, please consult us for precise solution and competitive offer.
Multi Functional Extraction Tank has been wildly used in Chinese Herbal Extraction Production Line, it is featured of excellent extraction and aromatic oil collection performance with long thin appearance for sufficient heat transfer. The discharging door is stably opened and closed through pneumatic double cylinders. A number of ball rolling and locating bearings are used between the rotating locking ring and the flange to eliminate the defects of friction and greatly reduce the thrust of the cylinder.
| Model | DTWZ-D-6000L | DTWZ-D-3000L | DTWZ-D-2000L | DTWZ-D-1000L |
| Pressure in interlayer(Mpa) | <0.1 | |||
| Pressure in jacket(Mpa) | <0.25 | |||
| Pressurein cylinder(Mpa) | 0.6-0.7 | |||
| Diameter of manhole(mm) | 450 | 400 | 400 | 350 |
| Heating area(m2) | 30 | 15 | 10 | 6 |
| Condensing area(m2) | 60 | 30 | 20 | 12 |
| Cooling area(m2) | 1.5 | 1 | 1 | 1 |
| Evaporation capacity(kg/h) | 2000 | 1000 | 600 | 350 |
| Dimension(m) | 6.5*4.8*8.8 | 6.15*4.5*7.13 | 5*3.8*5.5 | 4.13*3.4*5.5 |
